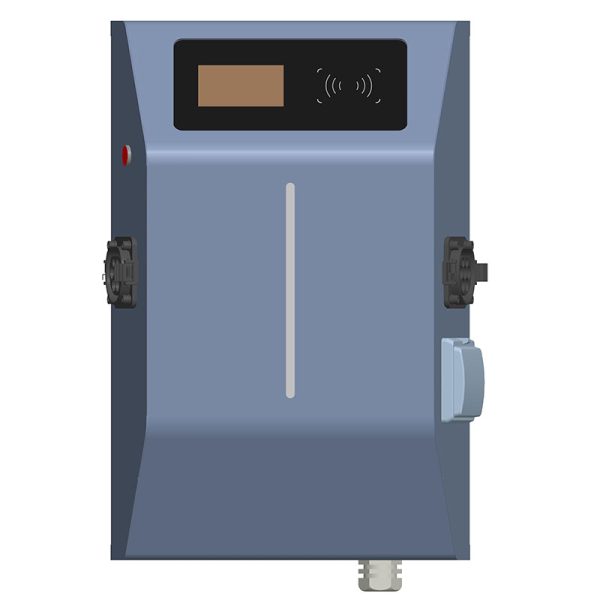

| Datasheet | Model | HSAC22KW01 |
| Input | Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC | |
| Rated Current | 16A | |
| Frequency | 50/60Hz | |
| Output | Output Voltage | 400V AC |
| Maximum Current | 16A*2 | |
| Rated Power | 11kW*2 |
Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency
Payment: T/T, L/C, PayPal
Stock Sample is Available
| Datasheet | Model | HSAC22KW01 |
| Input | Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC | |
| Rated Current | 16A | |
| Frequency | 50/60Hz | |
| Output | Output Voltage | 400V AC |
| Maximum Current | 16A*2 | |
| Rated Power | 11kW*2 | |
| User Interface | Charge Connector | Type 2 female chassis connector |
| Enclosure | Galvanized steel | |
| Front Panel | Temper glass | |
| LED Indicator | Green/Yellow/Red | |
| LCD Display | 4.3inch | |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play/RFID card/App | |
| Emergency Stop | Yes | |
| Communication | WiFi | Optional |
| Ethernet | Optional | |
| 3G/4G | Optional | |
| OCPP | OCPP 1.6 Json | |
| Safety | Energy Meter | YES |
| RCD | 30mA Type A + 6mA DC | |
| Ingress Protection | IP54 | |
| Impact Protection | IK08 | |
| Electrical Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection | |
| Certification | CE | |
| Certification Standard | EN/IEC 61851-1: 2017, EN/IEC 61851-21-2: 2018 | |
| Warranty | 1 years | |
| Environment | Installation | Wall-mount/Pole-mount |
| Work Temperature | -30℃~+50℃ | |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000m | |
| Package | Product Dimension | 600*400*177mm (H*W*D) |
| Net Weight | 30kg | |
| External Package | Carton | |
| Carton |
| color | Red, White, Black |
|---|
1. Confirm the production order
2. the technical department confirms the technical parameters
3. the production department conducts production
4. Inspection
5. shipment
About 25-30 days, except for special customization
1 container (MOQ for sample order: 1 unit )
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Always a pre-production sample before mass production; Always final Inspection before shipment.
1. Confirm the production order
2. the technical department confirms the technical parameters
3. the production department conducts production
4. Inspection
5. shipment
The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way.
Accepted Payment Currency: USD, EUR, HKD, GBP, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit.
It is widely used in sports and entertainment, logistics, travel, environmental sanitation and other industries, and is very suitable for any country or region in the world.
Our company has many independent brands, of which Opai and Haibao have become well-known regional brands in China.
At present, the sales scope of our own brands mainly covers the global market
Our company’s online communication tools include Tel, Email, Whatsapp, Messenger, Skype, LinkedIn, facebook，instagram，twitter and Tiktok.
If you have any dissatisfaction, please send your question to marketing@andes.vip.
We will contact you within 24 hours, thank you very much for your tolerance and trust.
