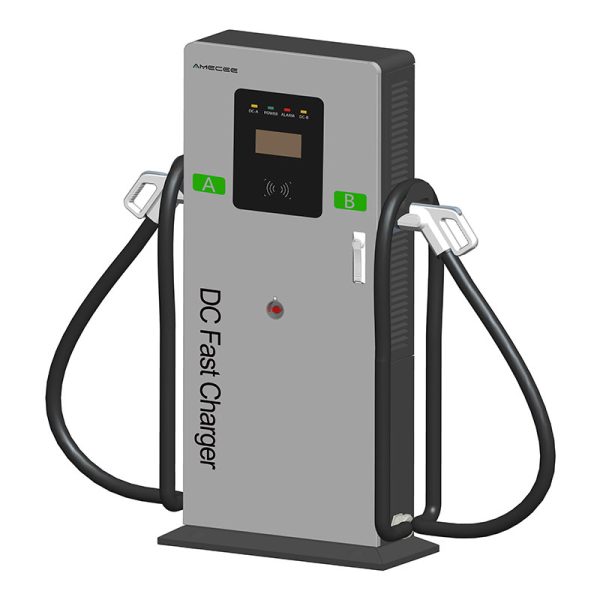

60KW80KW DC charger HSDC601000&HSDC801000

Datasheet Model HSDC601000 HSDC801000
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Frequency 50/60Hz
Output Output Voltage 200~1000V DC
Maximum Current 200A 250A
Rated Power 60kW 80KW

Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection

Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency
Payment: T/T, L/C, PayPal
Stock Sample is Available

Description

Datasheet Model HSDC601000 HSDC801000
Input Power Supply 3P+N+PE
Rated Voltage 400V AC
Frequency 50/60Hz
Output Output Voltage 200~1000V DC
Maximum Current 200A 250A
Rated Power 60kW 80KW
User Interface Charge Connector CCS2
Cable Length 5m
Enclosure Galvanized steel
LED Indicator Green/Yellow/Red
LCD Display 7inch
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Charger/RFID card
Emergency Stop Optional
Safety Energy Meter MID certified
RCD Type A
Ingress Protection IP54
Impact Protection IK08
Electrical Protection Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection
Certification CE
Certification Standard EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Warranty 2 years
Environment Installation Floor-stand
Cooling Method Fan cooling
Noise ≤60dB
Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
Package Product Dimension 1600*600*200mm (H*W*D)
Package Dimension 870*816*1800mm (L*W*H)
Net Weight 160kg
Gross Weight 200kg
External Package Wood case

Additional information

color

Red, White, Black
