Short Description:
● Power System: 6.2kwh(72V86Ah) Max capacity
● Motor: 5kw Rated power, 6kw Peak power
● Top Speed: 75mph Max Speed，62mph Sustained Speed
● Peak Torque: 118Nm
● Wheelbase: 1450mm
Acceptance: OEM/ODM, Trade, Wholesale, Regional Agency
Payment: T/T, L/C, PayPal
Stock Sample is Available
| Technical Specifications | Range | ||
| Top speed (max) | 120 km/h (75 mph) | City | 180 km (112 miles) |
| Peak torque | 118 Nm | Highway, 80 km/h (50 mph) | 120 km (75 miles) |
| Max capacity | 6.2 kWh (72V86Ah) | Highway, 113 km/h (70 mph) | 90 km |
| Power pack warranty | 2 years/unlimited kms | Highway, 130 km/h (80 mph) | / |
| Motor | Power system | ||
| Peak torque | 118 Nm | Max capacity | 6.2 kWh (72V86Ah) |
| Rated power | 5 kW | Charger type | 10A charger |
| Peak power | 6 kW | Charge time (10A charger) | 9 hours |
| Top speed (max) | 120 km/h (75 mph) | Charge time (18A car quick charger) | 5 hours |
| Top speed (sustained) | 100 km/h (62 mph) | Input | Standard 110 V or 220 V |
| Type | Brushless DC hub | ||
| Controller | Sine wave | ||
| Chassis / Suspension / Brakes | Dimensions / Weight/Package/Loading | ||
| Front suspension | inverted adjustable hydraulic | Wheelbase | 1450 mm |
| Rear suspension | adjustable nitrogen | Ground clearance | 130mm |
| Front suspension travel | 120 mm | Seat height | 775 mm |
| Rear suspension travel | 45 mm | Pillion height | 945 mm |

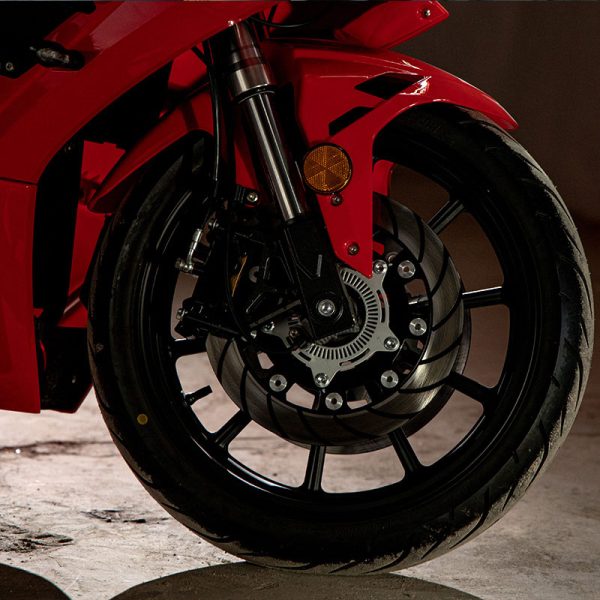

| Front brakes | 4 piston caliper, 300 x 4 mm disc |
Vehicle Size (L x W x H) | 2080 x 780 x 1090 mm |
| Rake | 26.2° | ||
| Rear brakes | single piston caliper, 240 x 4 mm disc |
Curb weight | 170kg |
| Carrying capacity | 150kg | ||
| Front tire | Kenda 120/70-17,SHMT | Package size SKD (L x W x H) | 2180 x 620 x 1100 mm |
| Rear tire | Kenda 150/70-17,SHMT | Package size CBU (L x W x H) | 2180 x 820 x 1220 mm |
| Front wheel | 3.00 x 17 | Loading SKD | 18 units/20GP, 38 units/40HC |
| Rear wheel | 3.50 x 17 | Loading CBU | 28 units/40HC |
| ABS | Optional | ||
| Economy | Warranty | ||
| Equivalent fuel economy (city) | 0.48 l/100 km | Standard motorcycle warranty | 1 years |
| Equivalent fuel economy (highway) | 1.13 l/100 km | Power pack warranty | 2 years/unlimited kms |
| Typical cost to recharge | $0.68 | ||
| Weight | 170 kg |
|---|---|
| Dimensions | 2180 × 270 × 415 mm |
| color | Red, White, Black |
1. Confirm the production order
2. the technical department confirms the technical parameters
3. the production department conducts production
4. Inspection
5. shipment
About 25-30 days, except for special customization
1 container (MOQ for sample order: 1 unit )
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Always a pre-production sample before mass production; Always final Inspection before shipment.
1. Confirm the production order
2. the technical department confirms the technical parameters
3. the production department conducts production
4. Inspection
5. shipment
The shipping cost depends on the way you choose to get the goods. Express is normally the quickest but also most expensive way. By sea freight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way.
Accepted Payment Currency: USD, EUR, HKD, GBP, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit.
It is widely used in sports and entertainment, logistics, travel, environmental sanitation and other industries, and is very suitable for any country or region in the world.
